Ensemble-based conformational modelling for macrocycles

Authors

  • Himani Tandon
  • Kyle G. Kroeck
  • Ajay N. Jain
  • Ann E. Cleves
  • Mario Öeren
  • Matthew D. Segall

From X-ray refinement to lead optimisation

Download poster pdf

Conventional ligand-fitting and refinement methods in X-ray electron density maps often yield models with unrealistically high conformational strain. This occurs because ligands are typically treated as single conformers using atom-specific B-factors. These parameters often introduce geometric distortions or obscure biologically meaningful pose variations that might misguide lead optimisation.

xGen™ is a real-space refinement method that addresses these problems by balancing how well a ligand fits the electron density with its internal conformational strain. Rather than a single static pose, it produces a realistic ensemble of conformers that collectively explain the experimental data. This approach reveals meaningful structural variations and yields physically plausible models with substantially reduced strain.

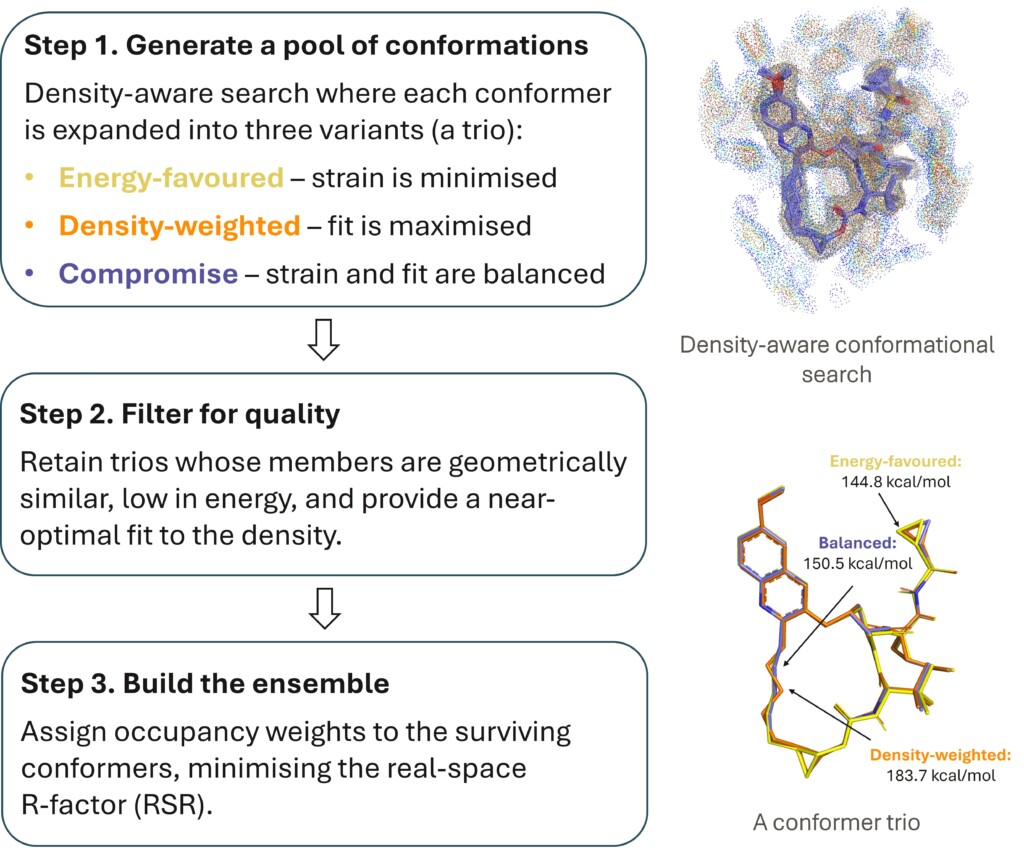

The xGen method

The xGen method
Comparison of conformer models

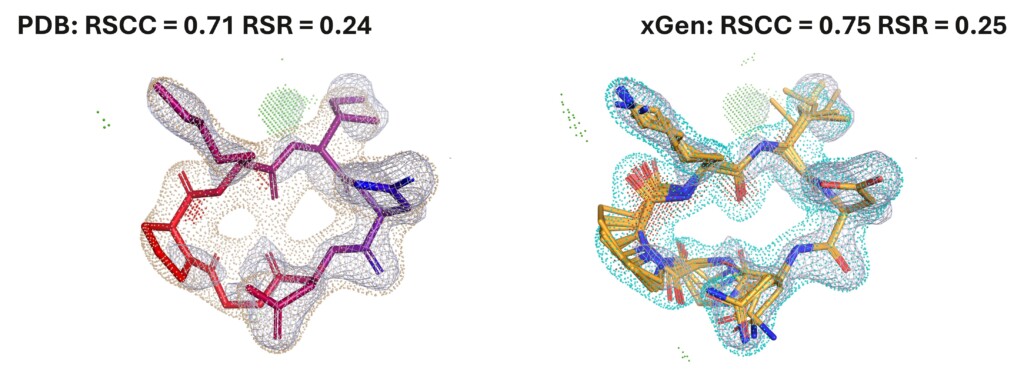

Comparison of the traditional single-conformer model (left) and xGen occupancy-weighted ensemble (right). xGen captures explicit heterogeneity and improved density fit with lower strain.

xGen ensembles reduce ligand strain by half

Validated on ~3,000 complexes, xGen ensembles reduce artificially high PDB ligand strain by ~50% while improving density fits. This occupancy-weighted approach provides physically realistic, low-energy alternatives to traditional single-conformer models.

Average strain (kcal/mol)DepositedxGen
Macrocycles6.83.7
Non-macrocycles4.22.5
Grazoprevir-NS3/4A protease (3SUE)

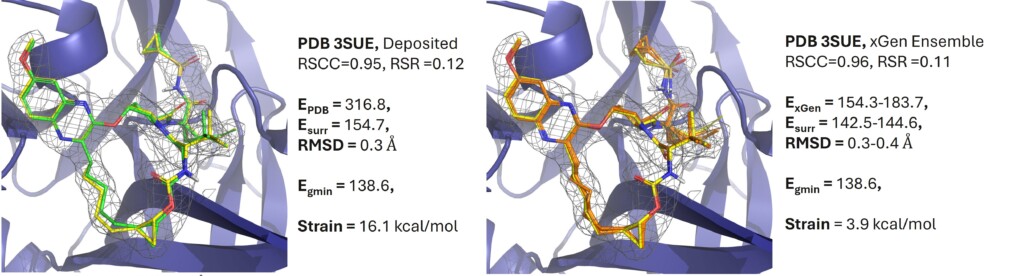

Grazoprevir-NS3/4A protease (3SUE). PDB ligand (green) fits the electron density well (left) but shows high strain (16.1 kcal/mol), calculated as the difference between the surrogate conformer (yellow) energy (Esurr) and the global minimum conformer energy (Egmin). xGen ensemble (orange) maintains fit quality (improved RSCC/RSR) while reducing strain by 75% to 3.9 kcal/mol (right).

Reduce synthetic effort by up to 90%

In an integrated workflow, xGen-generated low-strain ensembles of the lead peptide were used to derive conformational restraints. Combined with docking and scoring, this approach:

  • accurately ranked compounds by predicted binding energies,
  • generated correct poses for docked macrocycles.

The conformational strain emerged as the dominant predictor of ligand binding, and the clinical candidate was identified in the top-ranked 10% of synthesised analogues.

Accurate ranking of PD-L1 candidates

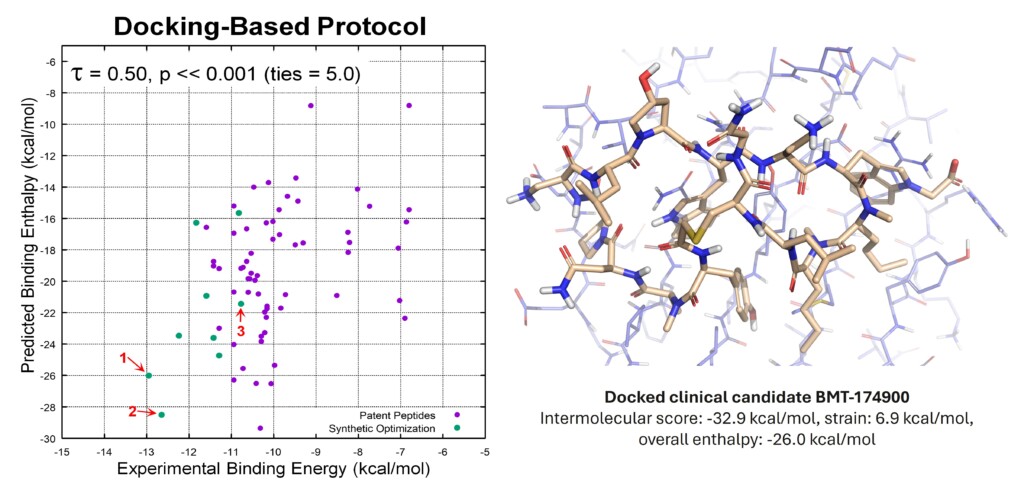

Accurate ranking of PD-L1 macrocyclic peptides. The correlation (left) between experimental and predicted binding energy (calculated as the sum of intermolecular enthalpy and conformational strain) successfully identified the clinical candidate BMT-174900 (right) as one of the top 10% of synthesised analogues. The points 1, 2, and 3 correspond to BMT-174900, BMT-153099, and BMT-139699, respectively.

The importance of strain

Strain as a predictor of binding

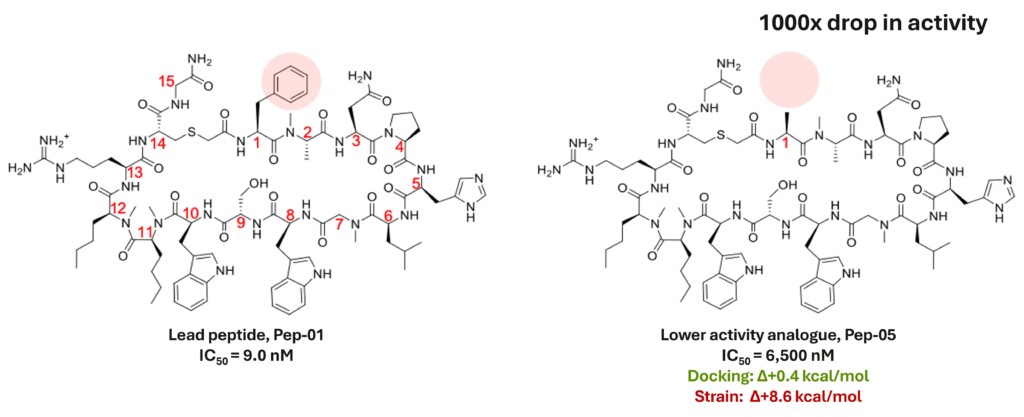

Strain as a predictor of binding. Substituting phenylalanine with alanine at position 1 in Pep-05 reduces activity by 3 log units despite a minor loss in intermolecular binding energy (<0.5 kcal/mol). However, this change increases macrocycle strain by ~9 kcal/mol.

Conclusions

  • xGen offers a paradigm shift for ligand modelling, producing physically realistic conformer ensembles for ligands with lower strain.
  • Ligand strain is a predictive factor for macrocyclic peptide optimisation: If the ligand has high strain, aim to optimise its geometry, and if it already has low strain, improve protein-ligand interaction footprint.
  • Accurate pose prediction enables effective CADD-driven macrocycle design, boosting efficiency and productivity.
